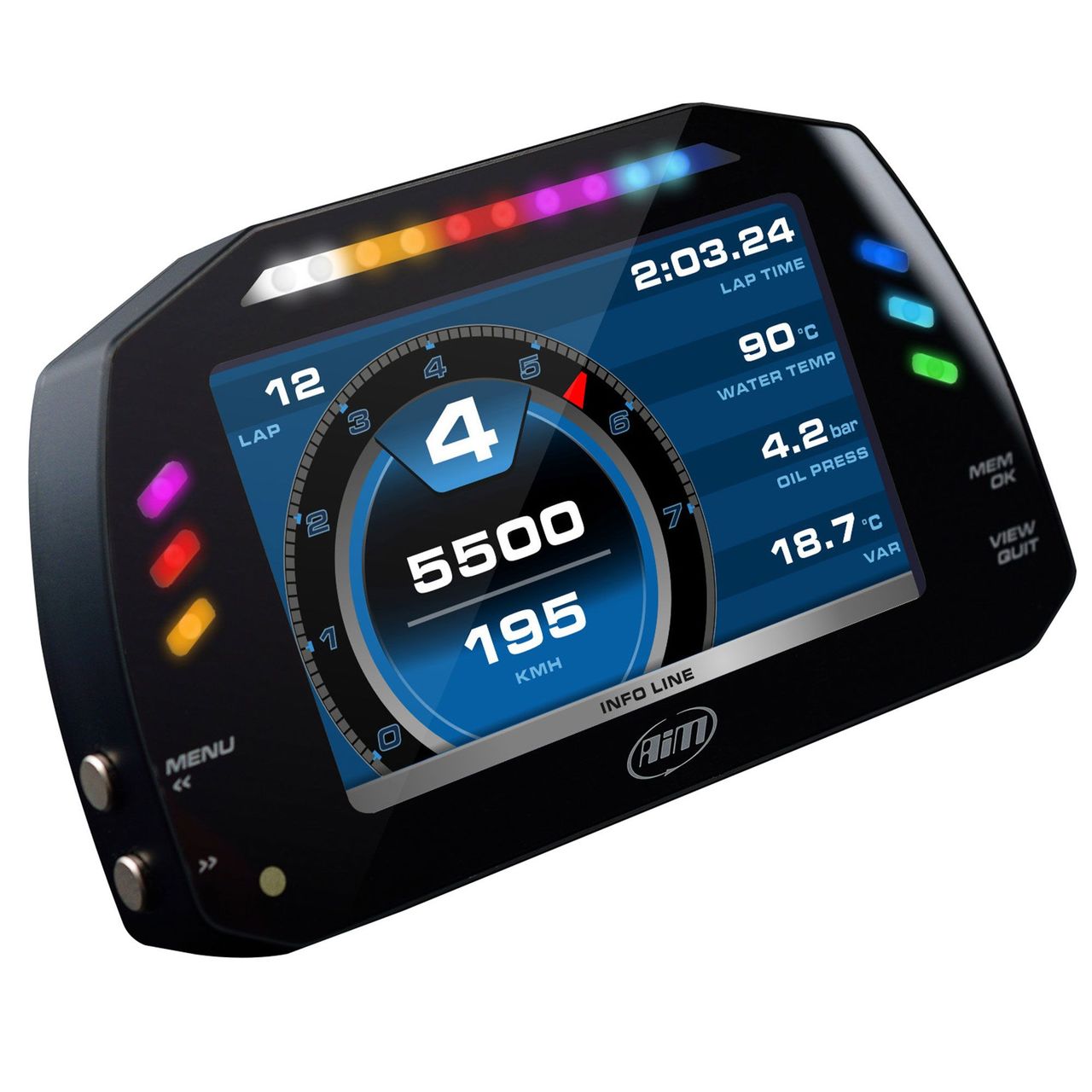

AiM Sports MXS 1.2 Strada Standard 5" Digital Dash Display

The AiM MXS Strada Dash Display is the evolution of the hugely successful MXL Strada Dash Display, one of the most widely used dashes on tracks and streets all over the world. The new generation MXS Strada has a 5" color display with great visual impact, configurable to show all the info coming from the Engine Control Unit (ECU), analog/digital inputs, pre-defined math channels and the optional GPS Module. Its data sampling capability can also be incremented by adding up to eight expansion modules.

High Contrast TFT Display: The MXS Strada has a high contrast TFT display: its visual quality being always optimized as its ambient light sensor keeps the backlight at the best brightness levels.

Available in two casing types, the "Street Icons" version needed by street/road users (fuel, oil, water temp etc), and the “Race” version which features track/competition focused, and ultimately bespoke warning LED's providing maximum specialized data monitoring.

Monitor data in pre-configured pages: MXS Strada shows, together with RPM scale, all the data you need, like speed, water temperature and oil pressure, lap times and much more... you can choose the custom pages you wish - including up to four additional fields - among a wide library of page styles, defining which data to be shown, their end of scale and measure units. Swapping between the pages is easy using the pushbuttons.

Flexible shift lights and alarms: The ten multi-colored RGB shift lights can be customized to your liking, defining the RPM threshold for each single gear. The same flexibility applies to the configurable RGB alarm LEDs: you can configure them in order to turn them on/off depending on analog or digital inputs, ECU values, expansion values, math channels or - optionally - GPS information. You choose conditions and colors: select a solid alarm or flashing one - and the flashing frequency. It is also possible to configure an accompanying text message, and set the alarm priorities.

CAN output: With the CAN Output you can send messages directly to an existing CAN network in order to improve the range of vehicle control possibilities.

Digital output: MXS Strada features a 1 amp digital output configurable in order to be activated/deactivated depending on the value of the analog/digital inputs or on impulses coming from the ECU. This allows you to automatically run external systems, i.e. to switch on/off additional lights, to activate/de-activate a cooling fan or circulation pumps etc when a certain event happens.

A modular system: Using the built-in CAN bus you can add optional expansion modules to visualize additional info:

• GPS08 Module - Thanks to GPS08 Module and Race Studio 3 software, you can immediately get lap times and all data needed for engine tuning as well as for improving driving technique.
• Channel Expansion - Add up to 4 0-5 Volt analog channels.
• TC Hub - Add up to 4 K thermocouples.
• LCU-One Lambda Controller - Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows to perfectly tune the carburation.
• SmartyCam GP HD - Bullet-cam designed for motorsports.

Technical specifications

• Display 5” TFT
• Resolution 800x480 pixels
• Contrast 600:1
• Brightness 700cd/m2 - 1,100 Lumen
• Ambient light sensor Yes
• Alarms LEDs 6 RGB freely configurable
• Shift light 10 integrated freely configurable RGB LEDs
• CAN connections 2
• ECU connections CAN, RS232 or K-Line
• ECU compatibility + 1,000 industry leading ECUs
• Expansion CAN connection GPS, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
• Analog inputs 4 fully configurable, max 1,000 Hz each
• Digital inputs 1 speed input, lap signal, coil RPM input
• Digital outputs 1 (1 Amp max)
• Second CAN Yes
• Body Anodized Aluminum
• Pushbuttons Metallic
• Connectors 2 AMP connectors
• Dimensions 169.4x97x23 mm
• Weight 480 g
• Power consumption 400 mA
• Waterproof IP65
• MXS Strada
• USB cable
• 14 pin standard wiring
• 23 pin connector + contacts
• Race Studio 3
