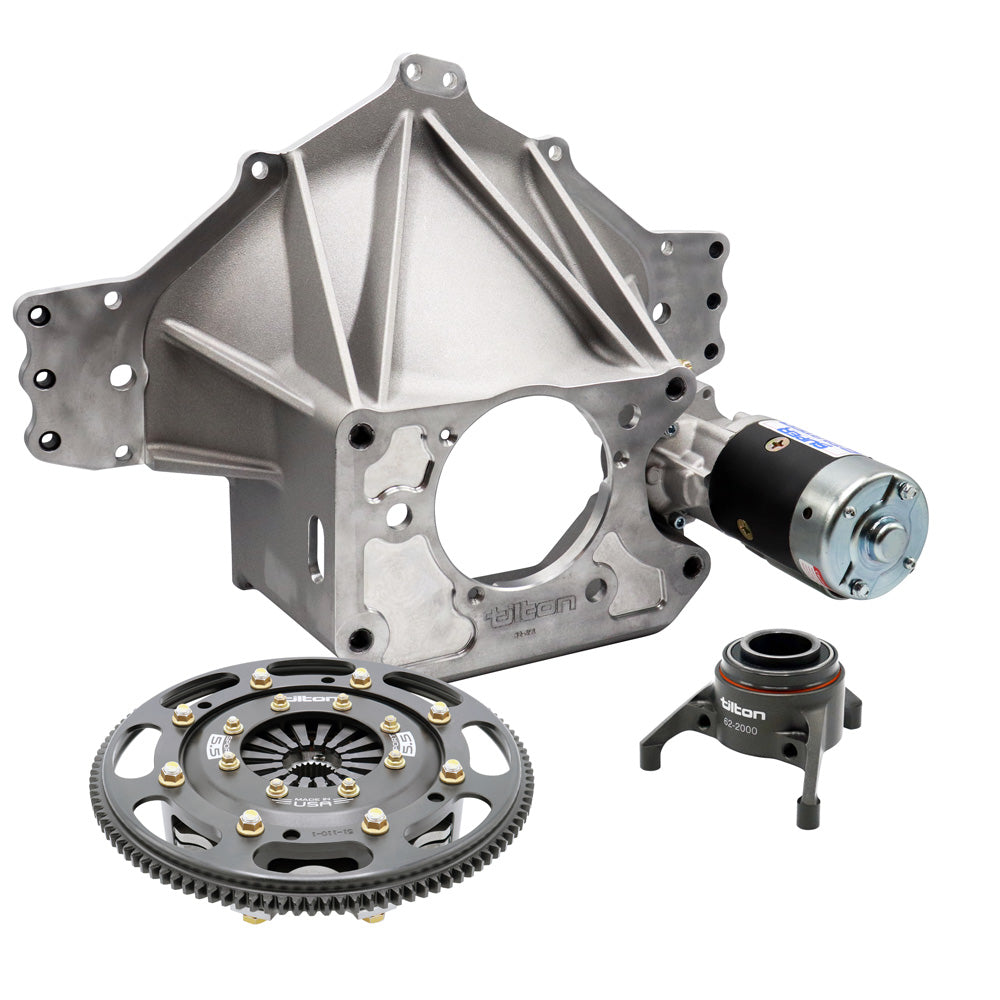

Tilton Racing - 110T Aluminum Rear-Mount Starter Bellhousing Kits Ford Small Block with Sport 5.5 Clutch 3 Disc Metallic 26-Spline

Tilton Racing - 110T Aluminum Rear-Mount Starter Bellhousing Kits Ford Small Block with Sport 5.5 Clutch 3 Disc Metallic 26-Spline

52-52130

Category: Bellhousing Kits
Vendor: Tilton Racing
You save 15% ($427.50)
$2,422.50
$2,850.00 $2,422.50
Sale Sold out
Shipping calculated at checkout.

110T Aluminum Bellhousing Kits feature a lightweight and rigid aluminum bellhousing that provides maximum ground clearance and features an easy access side-bolt mounting system for the starter.  Unlike other bellhousings on the market, the transmission no longer needs to be removed in order to service the starter.  Includes a Sport 5.5 3-disc clutch and 110-tooth cover-mounted ring gear.

Typical Applications

  • Late Model
  • Super Late Model
  • Asphalt Modied
  • Road Racing

Kit Includes:

Bellhousing

  • Aluminum rear-mount starter bellhousing designed for maximum weight savings
  • Compact design provides increase ground clearance and exhaust header clearance.
  • Integral mounting ears for use as rear engine mount
  • Accepts transmissions with Chevy 4-bolt mounting pattern and 4.68” register diameter
  • Blueprinted for parallelism and concentricity
  • Weighs 11.4 lbs

Clutch-Flywheel-Assembly

  • Sport 5.5 3-disc clutch
  • Billet steel 110-tooth (9.16”) ring gear
  • Button Flywheel
  • 26-spline or 29-spline clutch disc pack
  • Aircraft-grade clutch bolts
  • High-strength ARP flywheel bolts

Hydraulic Release Bearing

Super Starter

  • 40000-Series 3.0HP high-torque gear reduction mini starter
  • Side-bolt mounting design provides secure mounting to bellhousing and easy access for service
