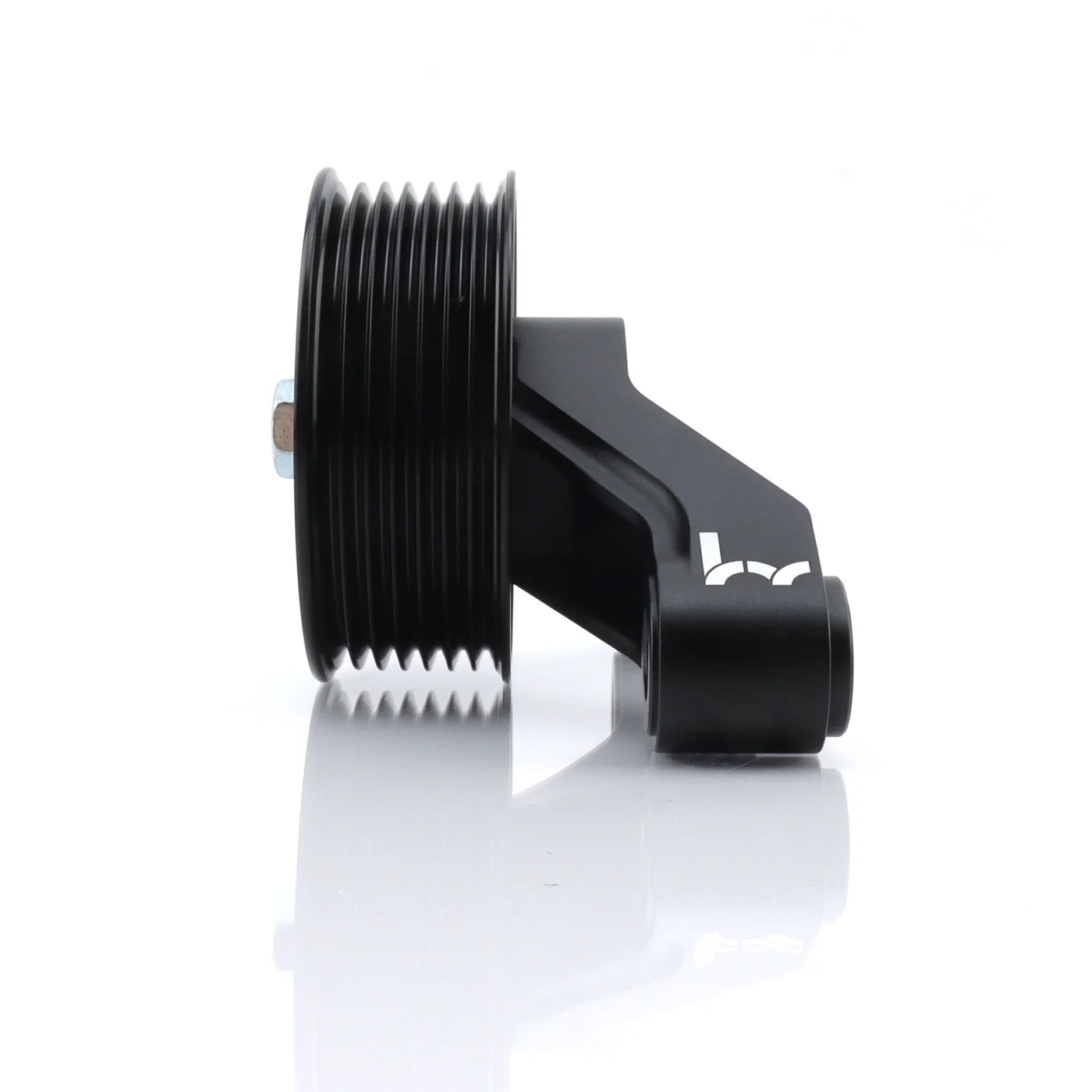

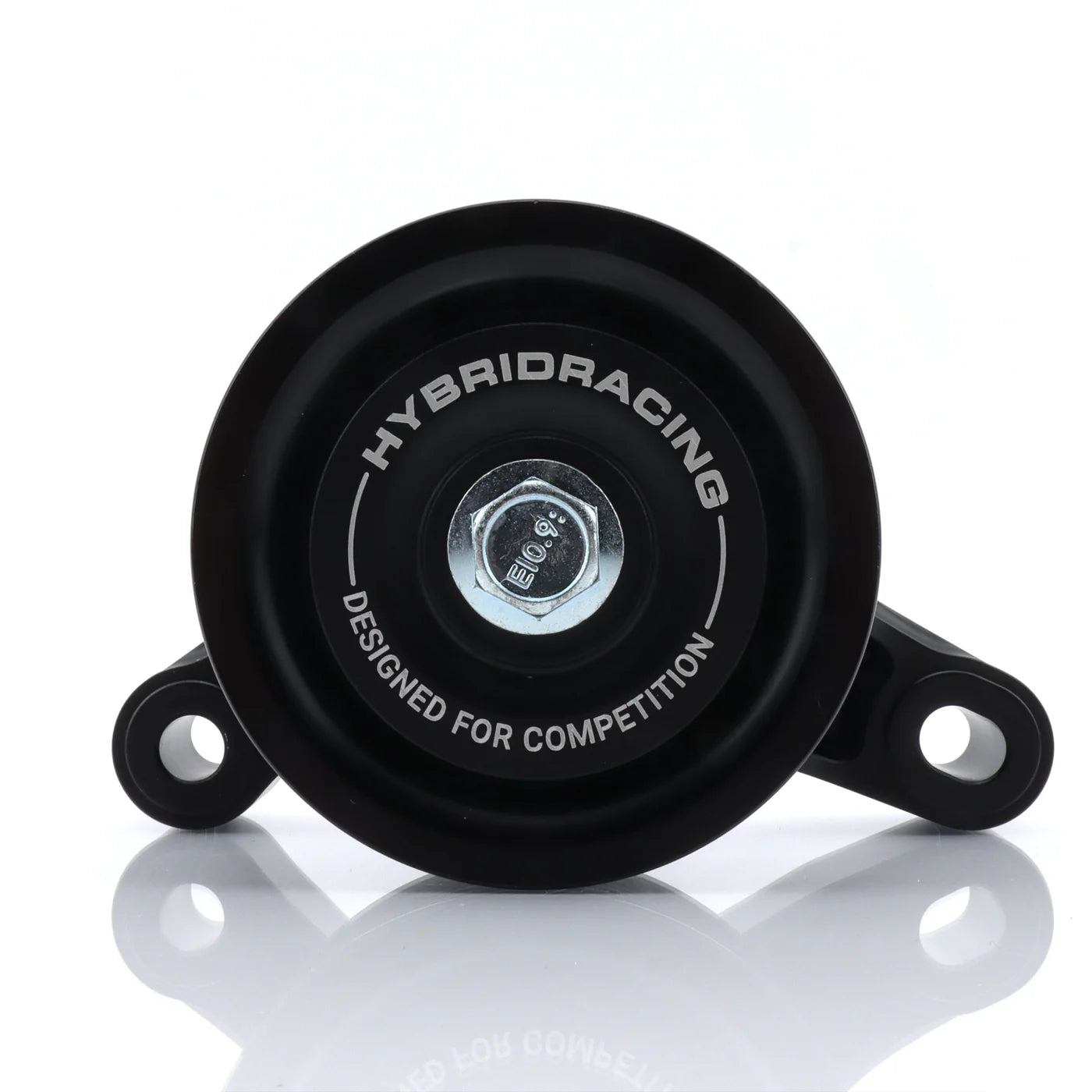

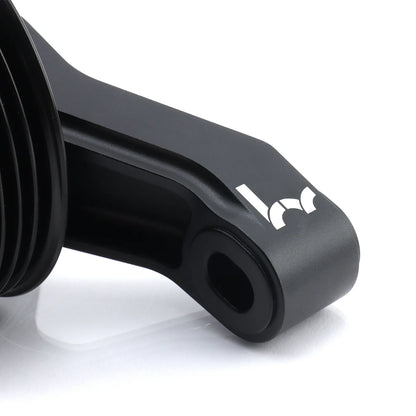

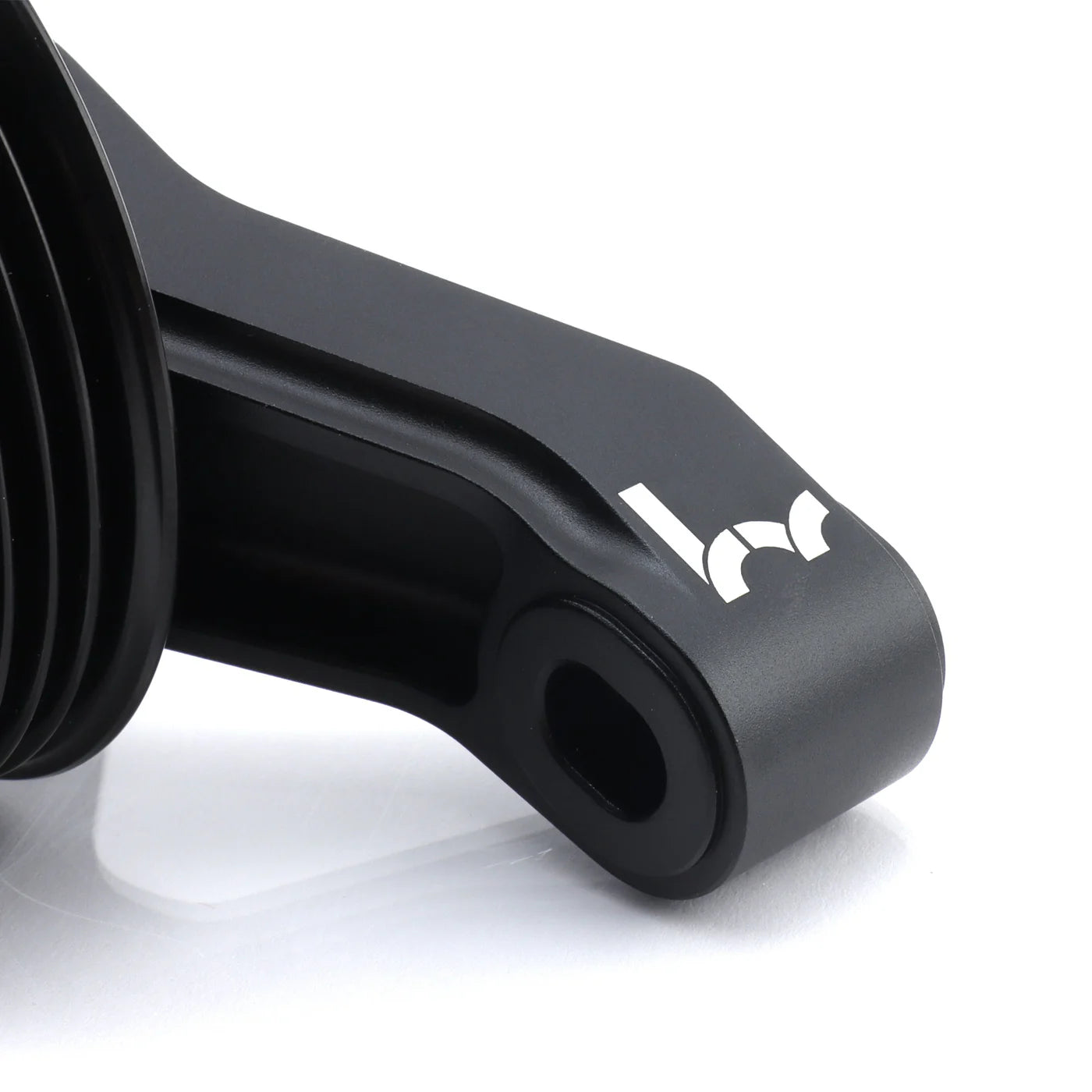

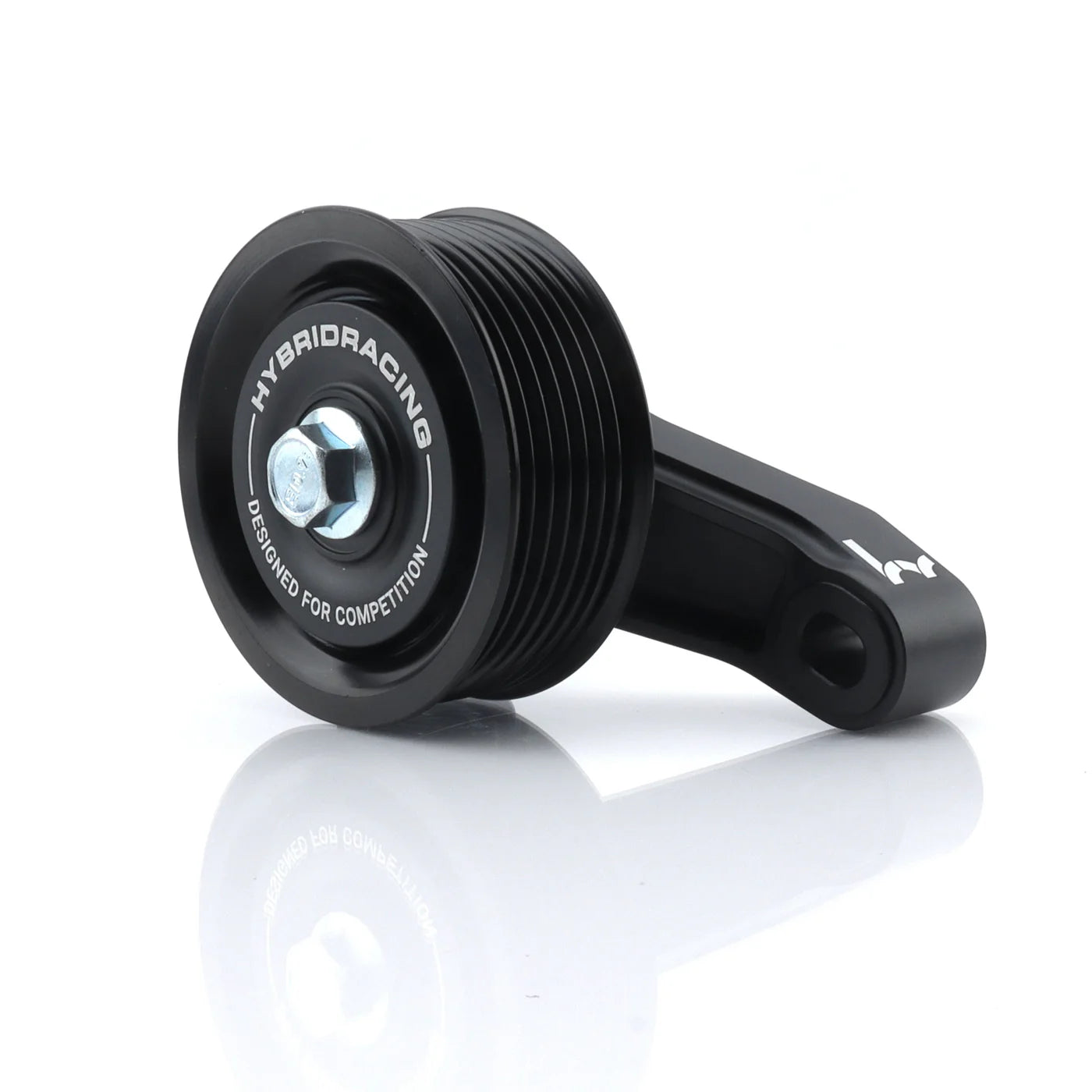

Hybrid Racing K-Series Idler Bracket, Pulley & Belt Combo

SKU:HYB-BUN-01-A1

Category:
Vendor: Hybrid Racing

$244.98

Sale Sold out

Shipping calculated at checkout.

Engine K20A2/A3/Z1/Z3 & K24A1/A2/A4/A8 (USDM) K24A (JDM

Crank Pulley Size : 6.25" (159mm) 5.8" (147mm) 6.25" (159mm) 6.50" (165mm)

Quantity

HYB-BUN-01-A1

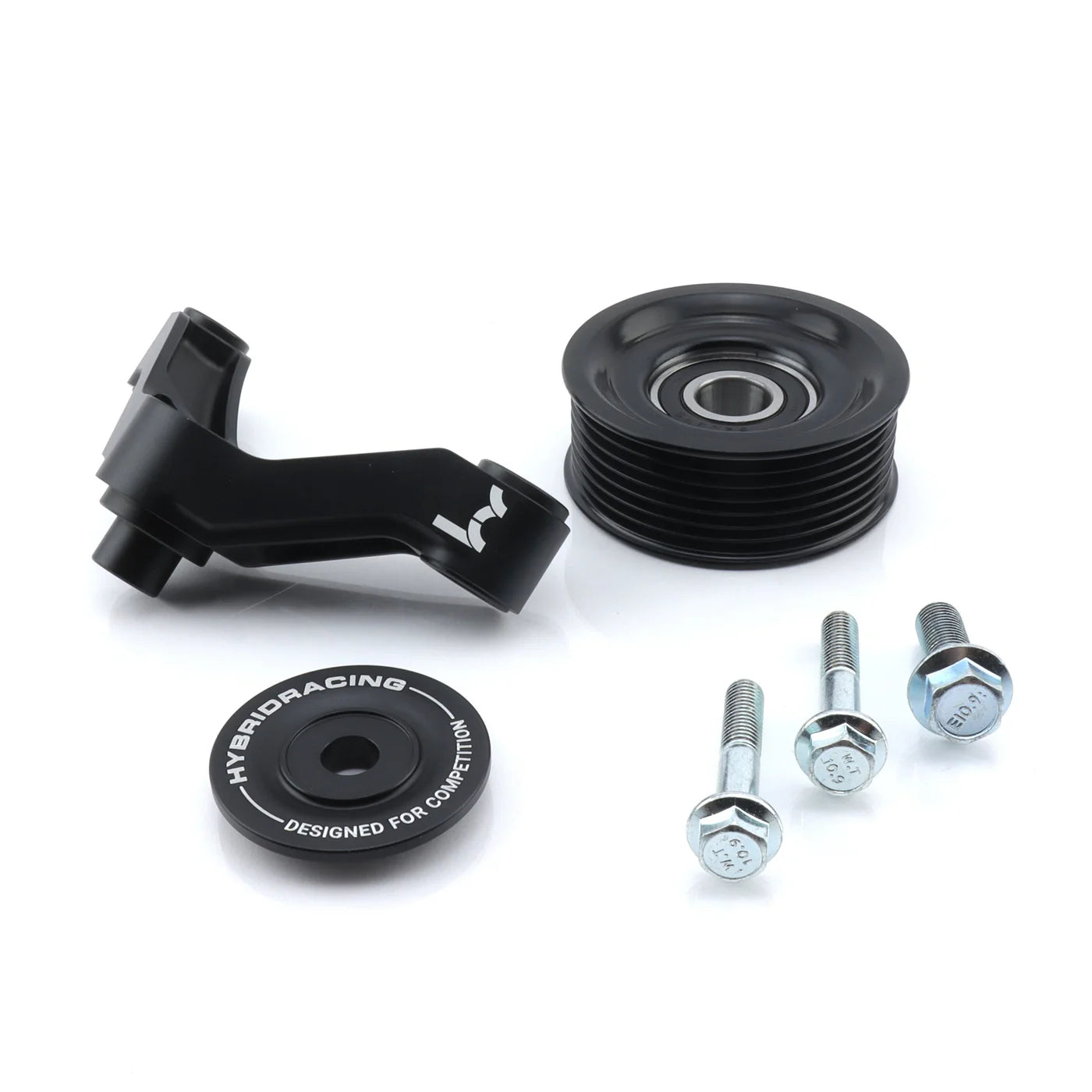

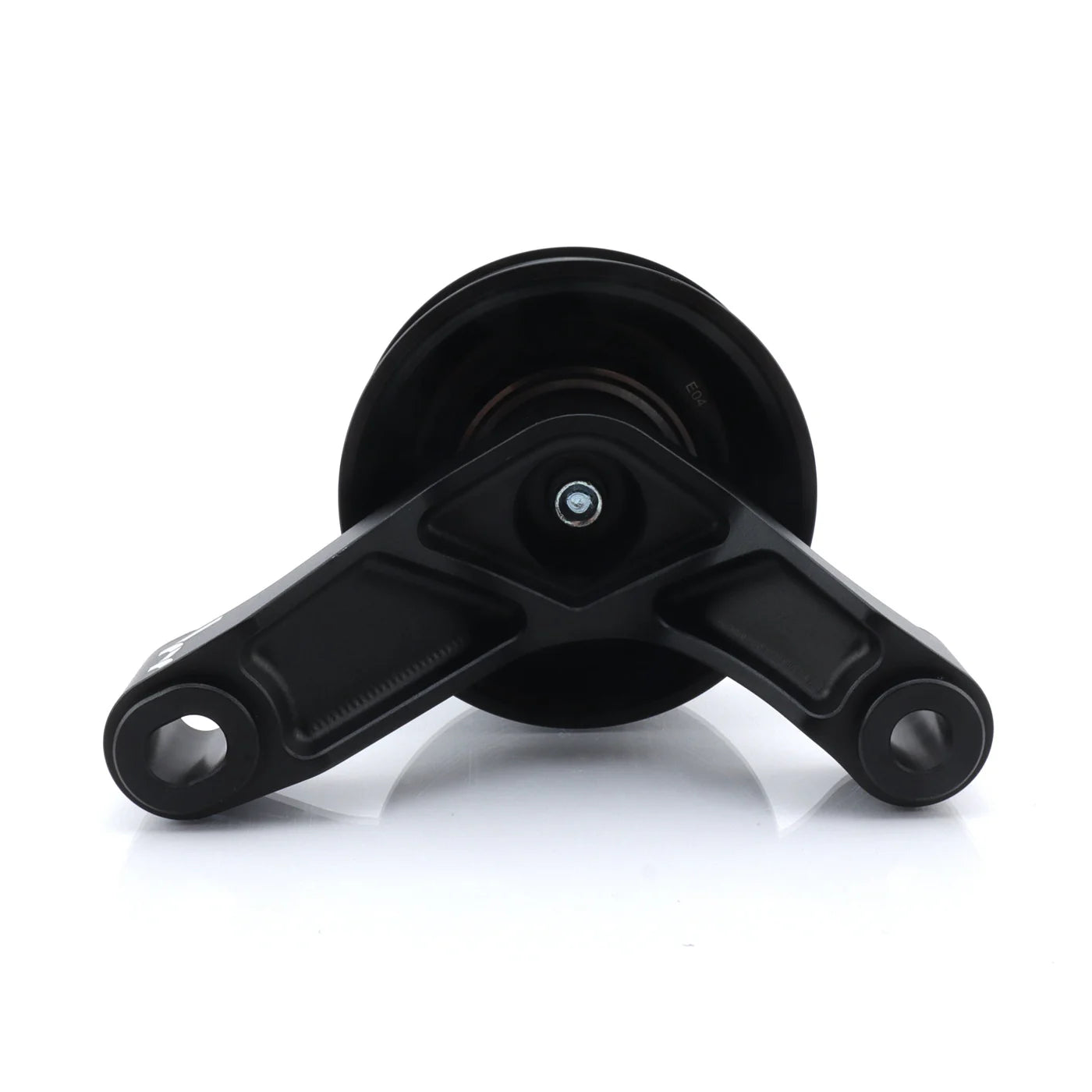

Machined & anodized billet aluminum

JIS 10.9 high-strength steel zinc plated hardware

OEM style pulley

OEM quality bearing

Strength & Flexibility
We tackle one of the most common K-Swap issues with a new look and fresh idea. Our idler bracket and pulley kit was designed to take the guesswork out of a reliable belt tensioner system. Most aftermarket setups available today can do the job of getting you up and running, but none take the time to ensure that the serpentine belt system is within the proper tension window. A tight belt means excess wear on all components and a loose belt risks having the belt come off, or slip.

Our solution is simple. Keep the OEM belt tensioner and alternator in place. Our bracket replaces the power steering pump and our guide helps you find the right belt that puts it in the OEM system in the proper tension window. No more worries about your alternator falling, belt walking, or charging issues. We also altered the geometry to save precious room for better hood clearance.

We created two kits for the modern K-Swap. One for pretty much all engines sold in the USA, Japan, and Europe and another kit specifically for the common JDM K24A engine.

HYB-IDB-01-02
This kit will be the most common setup used. Since it fits nearly all of the known K-Series water pump housings and engines it will likely be the most popular. Known to fit the K20A, A2, A3, Z1, Z3, Z4 & K24A1, A2, A4, A8 means you will just need to measure your crank pulley to have a bolt-on solution. This kit requires no modifications to your water pump housing or any other accessory part.

Improved hood clearance saving over 1.5" compared to a stock power steering pulley. It's also .5" shorter than the OEM EP3 idler bracket and pulley.

HYB-IDB-01-04
This kit was specifically designed to fit the JDM K24A engine. This engine was never offered in the USA, however, has become very popular with engine importers. The HYB-IDB-01-04 includes a specific spacer bracket designed to be used on this engine only. From our research, there is no other engine like this in the US, therefore no other OEM option that we have tested worked.

Our kit improves hood clearance by being 1.81" shorter than the factory K24A power steering pump

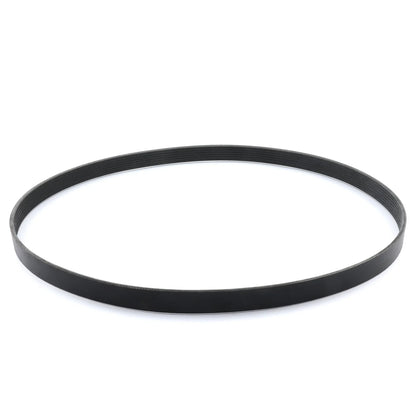

How to choose the correct belt:

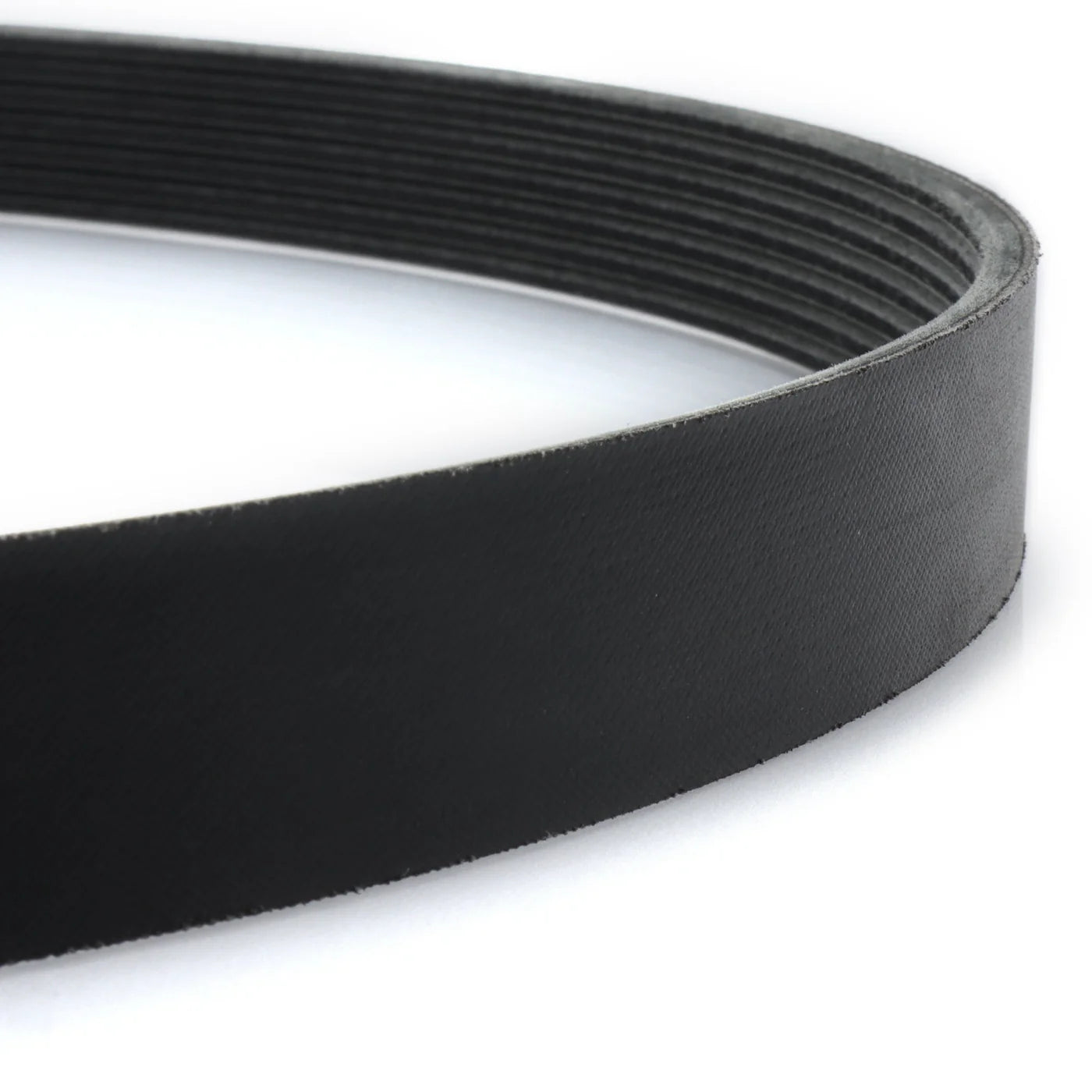

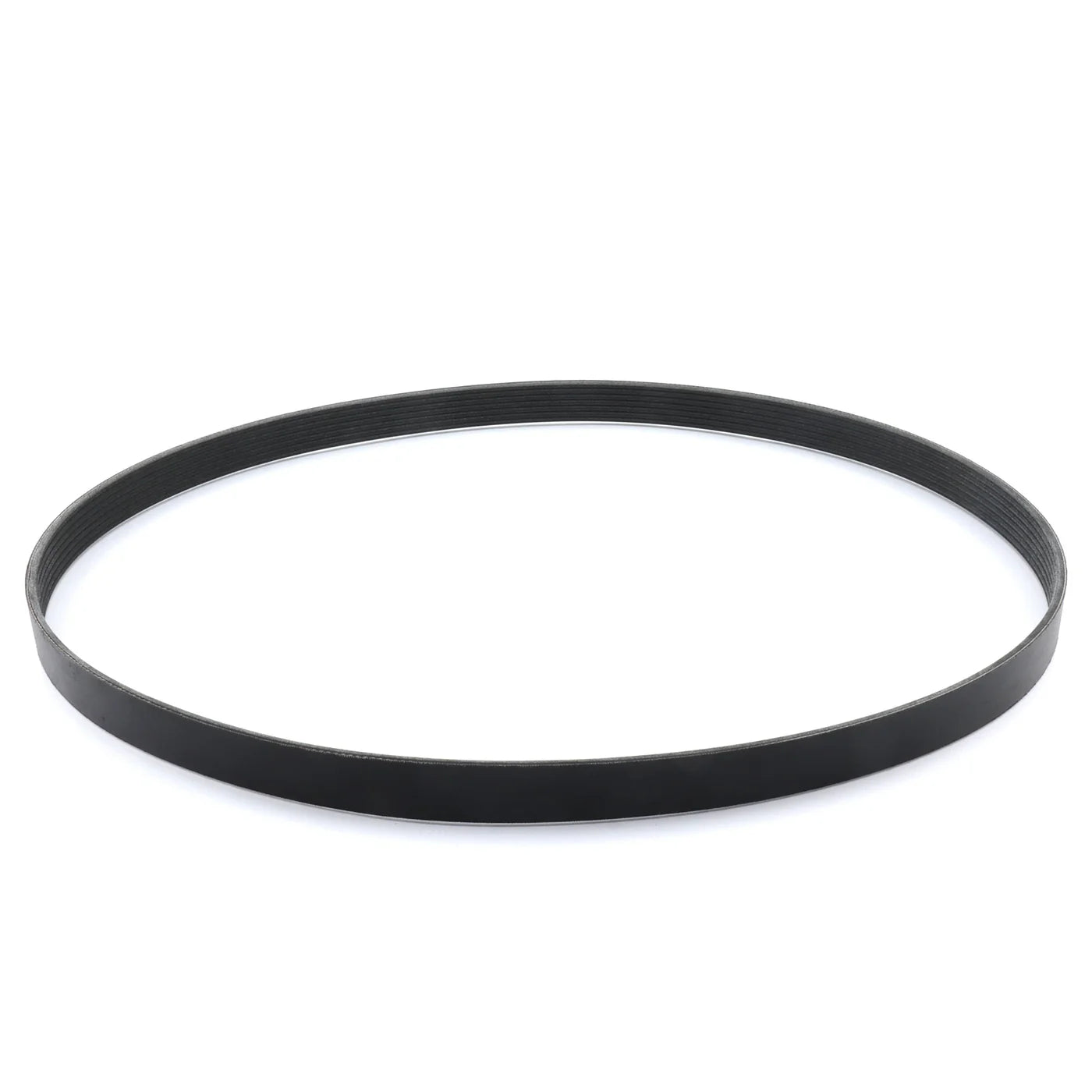

This kit does not include a belt, however, we do offer a bundle package that can include a belt if you choose. You will need to follow these steps to determine which belt to use on your specific engine.

1. Determine what engine you are using. (K20 or K24)
2. Determine if you are using AC or not.
3. Measure the outside diameter of the crank pulley.
4. Refer to the belt sizing chart to pick the correct size based on which kit you have and the diameter of the crank pulley.
