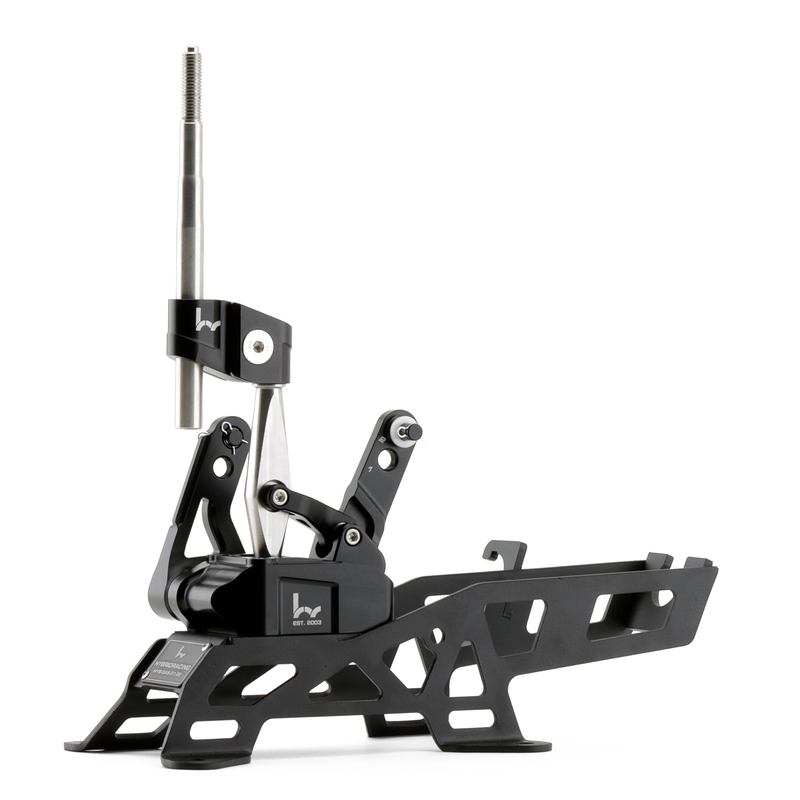

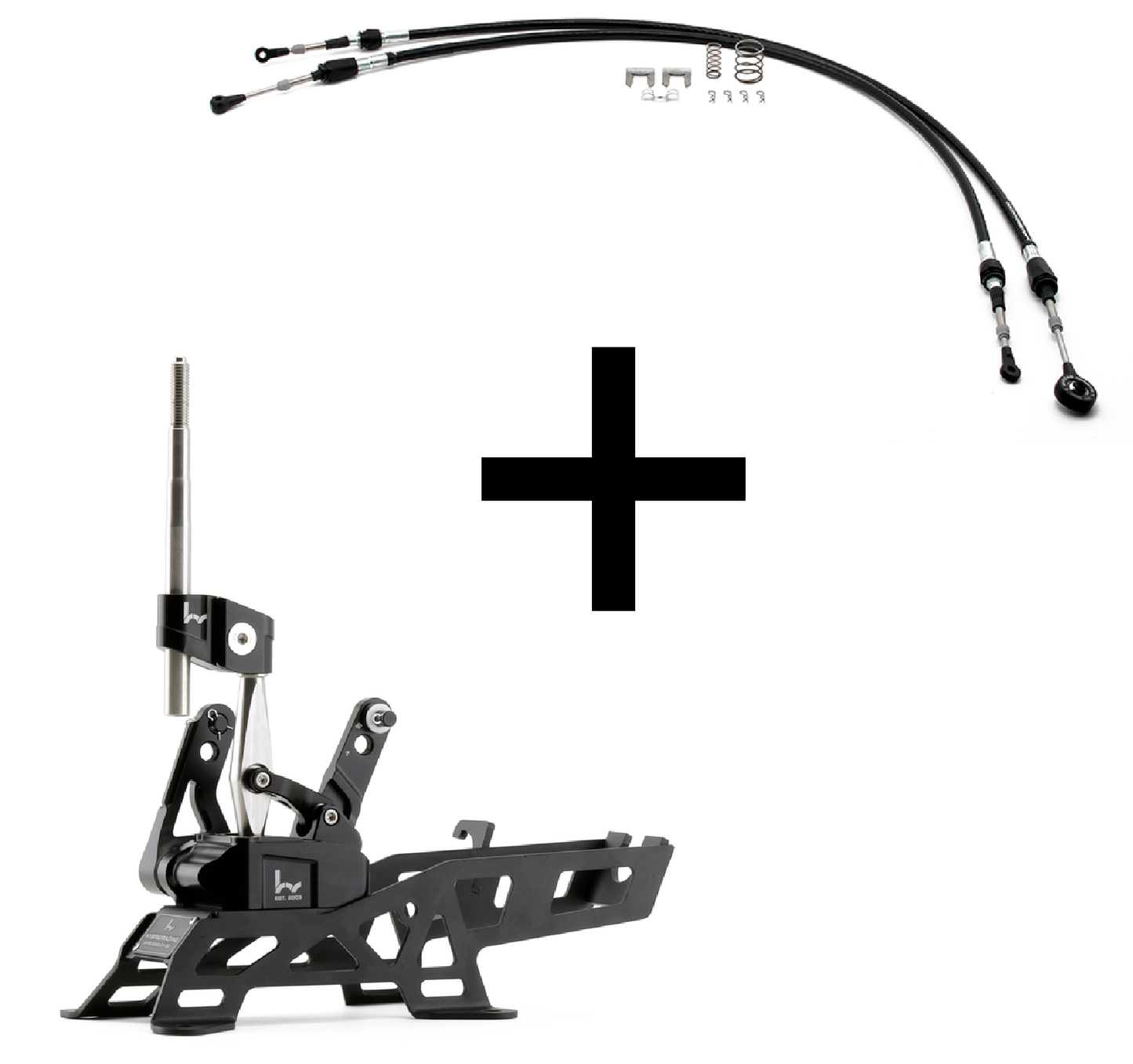

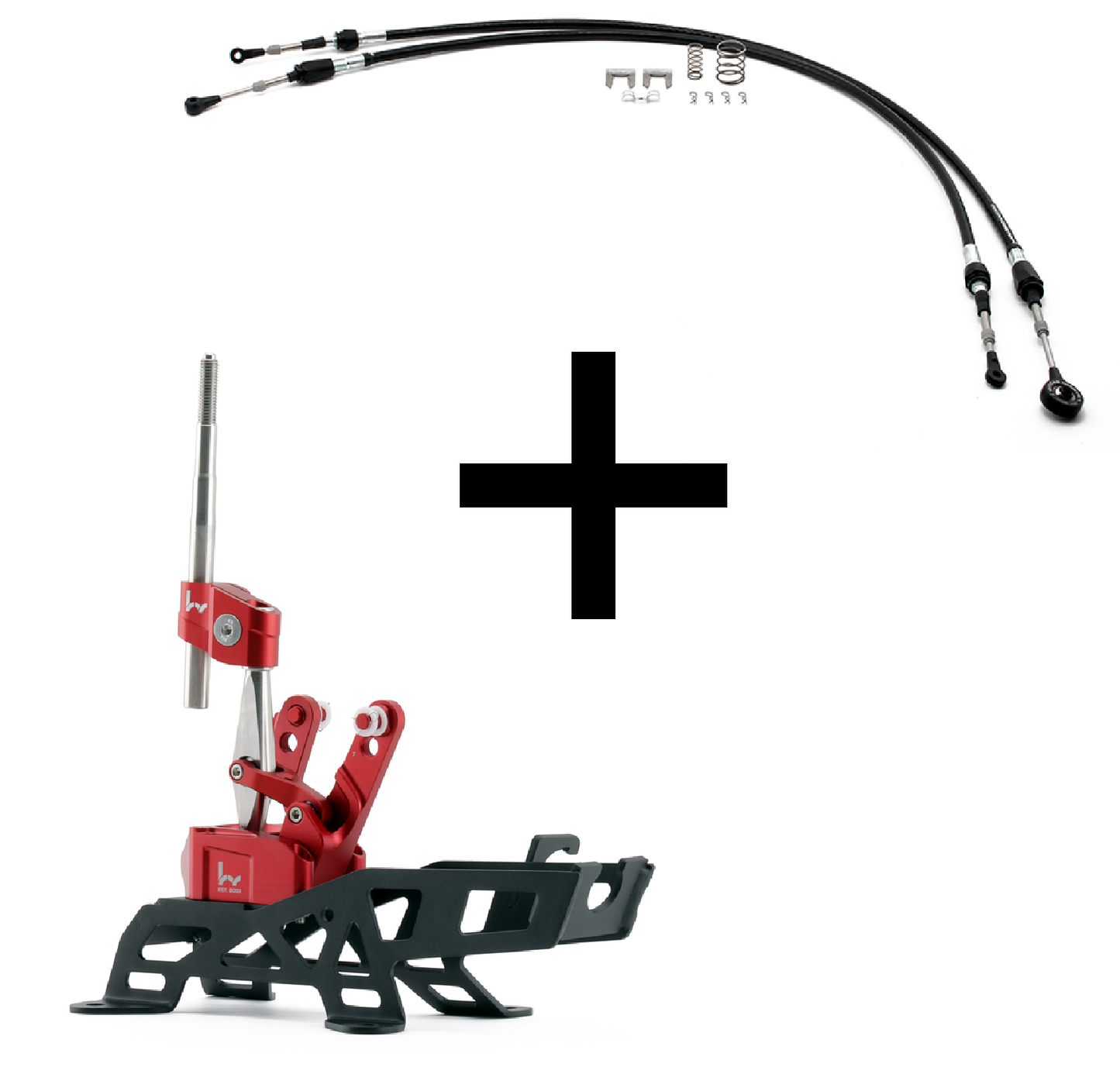

Hybrid Racing V3 Short Shifter & Shifter Cable Combo (02-06 RSX)

SHIFTER

The performance of a shifter is everything. It can mean the difference between winning a race and missing a shift, and a high-quality shifter can make your car shift like a new, high-performance machine. At Hybrid Racing, we take our shifters seriously. When we began designing our RSX shifter, we wanted to deliver a product that outperformed all others. We started our design process by incorporating the features that have made our other k-series shifters popular...adjustable height, adjustable shift knob position, and independently adjustable throw and gate spacing. We were the first to deliver features like this when we released our k-swap shifter over 5 years ago, and we have been refining our designs ever since. Our RSX shifter's performance is the best testament to this constant refinement.

We wanted to develop a shifter that felt great even after years of use and abuse. With that in mind, we incorporated a proprietary wear-compensating pivot ball design. We also used teflon-lined end links and spherical bearings to provide silky smooth short shifts and plenty of durability. To ensure everything worked as intended, we built a custom machine that cycled the shifter through all of the gears over 1.5 million times. To make sure we were leading the pack, we even put competing shifters on the same rig. No competing shifter lasted more than 10% as long as ours without seeing severe, performance hindering wear.

When it comes to adjustability, this RSX shifter truly shines. Adjustments are a breeze and can give you many different options in terms of shift feel. With just the turn of a single 5mm allen wrench, you can adjust your shift knob to be 2" taller or 1" lower than stock. With the same allen wrench, you can adjust the knob position, bringing it closer to or further from the steering wheel, meaning you can shift quickly and keep your hands on the wheel. Want your shifts a little shorter? This shifter can reduce throw anywhere from 10% to 50% (below stock throw) by just loosening the cable retaining bolt with a 10mm wrench and repositioning it. Gate spacing (left-right shifter motion) is also adjustable. This means that if you like short throws and wide gates, long throws and narrow gates, or any other combination, you can custom tailor it to your preference. The custom bell-crank style rocker design allows a larger adjustment range than competing shifters without putting your cables at risk of extreme angles, which is why many short throw adapters damage OEM cables.

A quick look at the materials used on our RSX shifter reveals a design that cuts no corners. The base plate is made from formed and welded A6 steel with dimpled holes to improve rigidity. The rockers feature full 6061-T6 aluminum construction with oil-impregnated bronze bushings that are designed to provide quiet operation with no need for lubrication. The shift levers are made from stainless steel to avoid unsightly corrosion. Even the centering springs received special attention when we had them custom wound and installed inside of a rubber sleeve to cut down on noise during shifts.

With its superior construction, adjustability, and unmatched testing and performance, this short shifter is second to none.

CABLES

The Hybrid Racing cables are a performance upgrade replacement for stock OEM cables. The solid rod ends, 30% thicker cable core and spherical bearings give the Hybrid Racing cables a firmer, tighter feel over OEM cables resulting in fewer missed shifts and a more connected feel to the chassis.

We created a cable to give people peace of mind and improved driving performance when they shift hard and during demanding racing applications and the Hybrid Racing performance cables achieve this goal!

Other notable features of the Hybrid Racing cables are spherical bearings, stainless steel push rods, and upgraded stainless steel swivel support tubes (oem are plastic) that are known to break on the OEM cables. All of the rod ends, and mounting bushings are CNC machined 6061 aluminum that have been heat treated and coated with a black hard anodized before being laser etched with the Hybrid Racing logo and flair.

Are these cables a direct replacement for my OEM RSX style cables?

Yes! For RSX Chassis the only extra work that is needed will be to retrofit the original cable gromment onto thew new HR cables. For K-Swap applications they run outside the car so no RSX grommet is neccesary. The OEM cable that controls the right/left motion of the shifter has been upgraded from a plastic twist-lock bushing to aluminum bushings and spring clip. This aluminum bushing simplifies installation a bit, but more importantly, it gets rid of yet another plastic part that tends to flex on the OEM cables, leading to a sloppy feeling shift. The extra spring clip that you will need to install the Hybrid Racing cables is included with the cables, so you will not need to buy any other parts. An easy to follow installation tips sheet is included with each set of cables to make installation as worry free as possible.

Additional K-Swap notes:

If you are using the Hybrid Racing cables on an OEM-style shifter mounted to a Karcepts adapter plate in a K-Swap chassis, you will need to widen the hole for the cable that is controlled by the front/back motion of the shifter where it goes through the Karcepts adapter plate. The hole needs to be widened to approximately 3/4" diameter. A stepped drill bit works well for doing this.

What is included with these shifter cables?

Aside from 2 shifter cables, each shifter cable set includes 4 cotter pins, and an "m" bracket for affixing the shifter cables to the chassis in K swap applications. If you are mounting these into an RSX, this bracket will not be needed. In addition, all shifter cables sets come with upgraded transmission gear selector springs. These aren't required but are reccomended.
