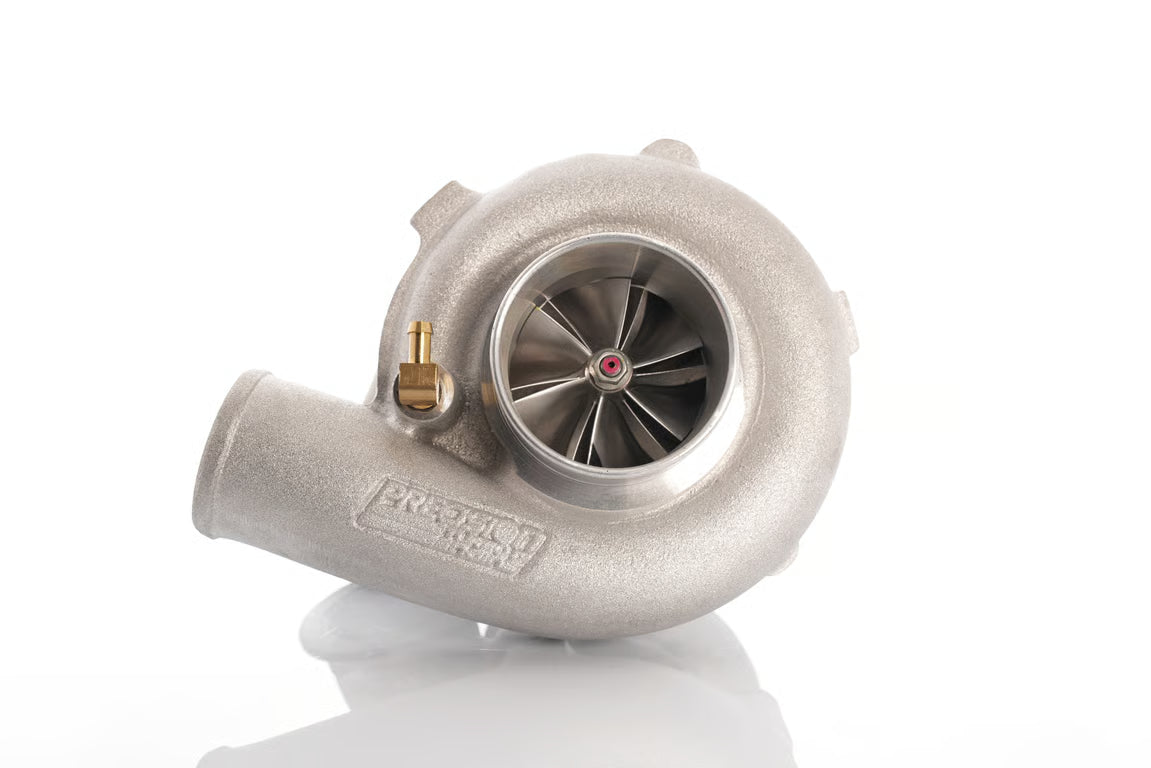

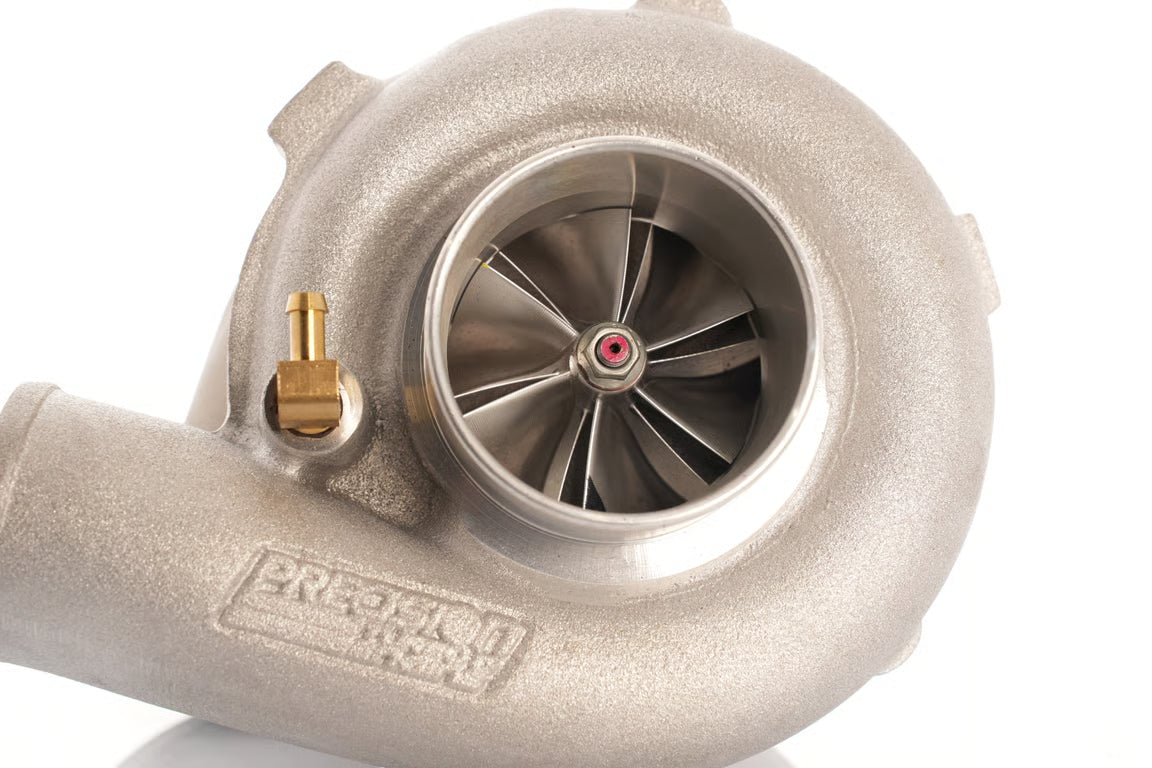

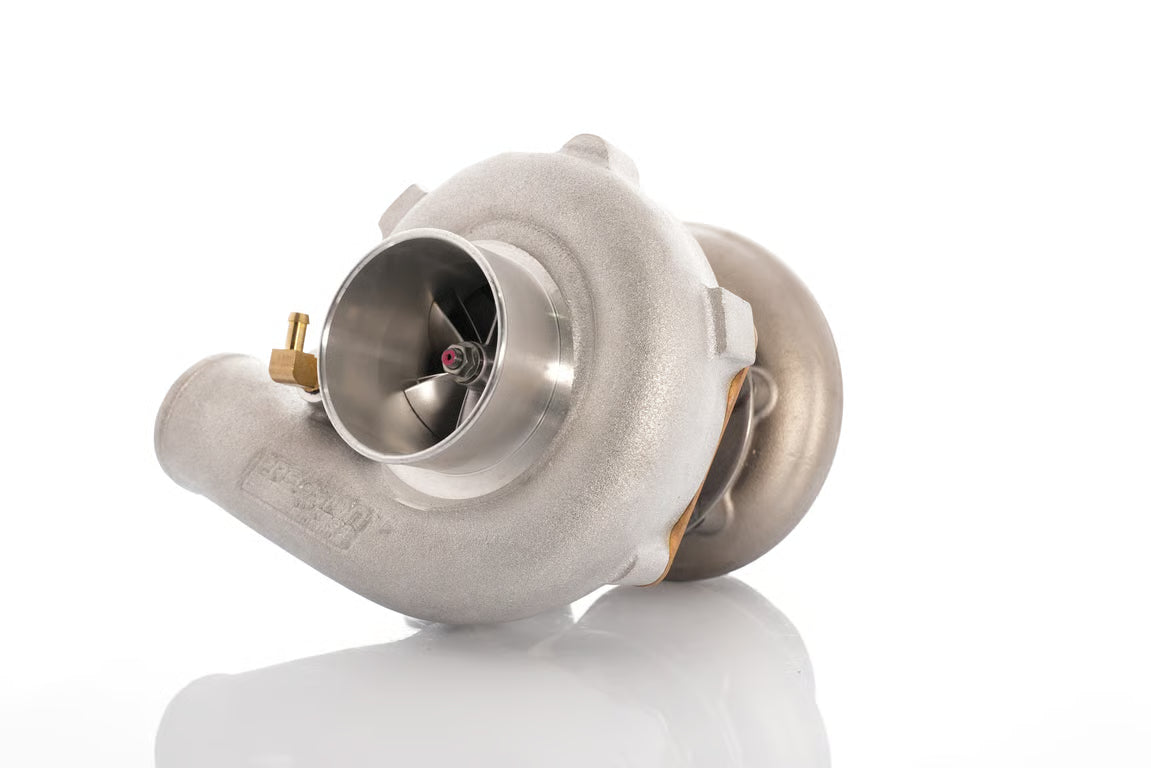

Precision Turbo & Engine - Street & Race GEN 1 PT5558 CEA JB Turbocharger 590WHP

PTE's PT5558 Turbocharger features the following: HP Racing: 590 Exclusive CEA® (Competition Engineered Aerodynamics) compressor wheel machined from a 2618-aluminum forging. Higher efficiency and faster transient response for maximum power and performance 55mm inducer compressor wheel Compressor cover options: "B" compressor cover 2.8" inlet/2.0" outlet "E" compressor cover 3.0" inlet/2.0" outlet "S" compressor cover 4.0" inlet/2.5" outlet "Ported S" compressor cover 4.0" inlet/2.5" outlet 58mm, 76 trim turbine wheel Turbine housing options: T3 .48, .63 or .82 A/R with 4 bolt (2.5") discharge T3 .48 or .63 A/R with 5 bolt discharge (with or without wastegate hole) T3 .48, .63 or .82 A/R with 3" OD (outer diameter) V-Band discharge V-Band inlet .64 or .82 A/R with V-Band discharge T4 Tangential .58 A/R with 3 5/8" OD (outer diameter) V-Band discharge Mitsubishi .48 or.63 A/R Buick .63 A/R K26 .82 A/R * NOTE: Additional cost may apply for certain housings. Available with either a Hydrodynamic 360 thrust bearing system or an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA) Precision customers have a history of setting records and getting noticed. They don't sit in the stands watching the action, they're the ones making it happen. Innovation is a collaborative process, and we focus our efforts on you. Get involved and be a part of the action today with PTE.

PTE 5558 Journal Bearing Turbo

We know you want to be the best both on the track and off. Whether you're a diehard racer or just looking to boost your daily driverperformance, Precision Turbo and Engine has what you need. For exceptional power and unbeatable technology at an affordable price, can help you find the perfect turbocharger for your unique setup.

Features

• Exclusive CEA compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 55mm inducer compressor wheel
• Compressor cover options - "B" compressor cover 2.8" inlet/2.0" outlet  - "E" compressor cover 3.0" inlet/2.0" outlet  - "S" compressor cover 4.0" inlet/2.5" outlet  - "Ported S" compressor cover 4.0" inlet/2.5" outlet
• 58mm, 76 trim turbine wheel
• Turbine housing options - T3 .48, .63 or .82  A/R with 4 bolt (2.5") discharge - T3 .48 or .63 A/R with 5 bolt discharge (with or without wastegate hole)  (PTE-T3 .48, .63 or .82 A/R with 3" V-Band discharge - V-Band inlet .64 or .82 A/R with V-Band discharge - T4 Tangential .58 or .68 A/R with 3 5/8" V-Band discharge - Mitsubishi .48 or.63 A/R
• Available with either a Hydrodynamic 360° thrust bearing system or an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

Relevant Part Numbers

• PTB205-5558, PTB305-5558, PTB405-5558, PTB505-5558
• Turbine Housing Clamp & Flanges Reference
• Compressor Cover Reference

Applications

• Universal

What's in the box?

• 1 Turbo Charger

Installation

• Click Here

Warranty

• PTE Limited Warranty
