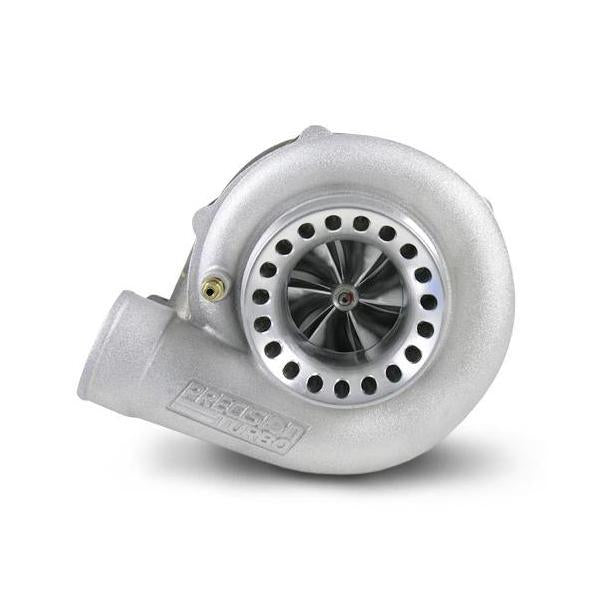

Precision Turbo & Engine - Street & Race PT6266 CEA BB Turbocharger - 735WHP (305-6266B)

PTE 6266 Ball Bearing Turbo

This is the turbo that changed history: the first mass-production unit to feature Precisiongroundbreaking CEA compressor wheel technology, the PT6262 CEA turbocharger is considered "the holy grail" by many in the forced induction world. This turbo can help you make unstoppable power when used on its own, or double up to twins for a much more intimidating and incredible setup.

Please Note: Available with either a Hydrodynamic 360° thrust bearing system, or an air-cooled, dual ceramic ball-bearing center housing rotating assembly (CHRA)

Features

• Exclusive CEA® compressor wheel machined from a 2618-aluminum forging
• Higher efficiency and faster transient response for maximum power and performance
• 62mm inducer compressor wheel
• Compressor Cover Options - "E" compressor cover 3.0" inlet/2.0" outlet - "Ported S" compressor cover 4.0" inlet/2.5" outlet
• 66mm, 76 trim turbine wheel
• Turbine Options -T3 .63 or .82 A/R with 4 bolt (2.5") discharge -T3 .63 A/R with 5 bolt discharge (with or without wastegate hole) -T3 .63 or .82 A/R with 3" V-Band discharge -V-Band inlet .82 A/R with V-Band discharge -T4 Tangential .58, .68, .81, or .96 A/R with 3 5/8" V-Band discharge -T4 Divided .84, 1.0, 1.15, or 1.32 A/R with 3 5/8" V-Band discharge -Buick .63 or .85 A/R -GMC Syclone/Typhoon .85 A/R

Relevant Part Numbers

• PTB305-6266B, PTB505-6266B
• Turbine Housing Clamp & Flanges Reference
• Compressor Cover Reference

Applications

• Universal

What's in the box?

• 1 Turbocharger

Warranty

• PTE Limited Warranty

Installation

• Click Here
