Precision Turbo & Engine - PB50 50mm Blow Off Valve (PBO083-2005)

PB50 50mm Blow Off Valve by Precision Turbo & Engine (PTE)

Made from lightweight 6061 and 7075 billet aluminum, PTE's 50mm unit is satin black anodized to be aesthetically pleasing yet functional while offering long-lasting protection from the elements.

It features a Kevlar-reinforced silicon rolling diaphragm for quick response and a hard-coat anodized valve stem for enhanced durability. The 50mm BOV also has a CFD designed valve and valve body for the highest flow even at low lift, while the attached O-ring seal prevents leakage.

Furthermore, PTE's 50mm BOV also utilizes an innovative and industry-first proprietary wave spring for added weight savings while still holding the valve closed under high vacuum idling. Designed to release back up pressure created when the throttle is closed via a spring-loaded valve diaphragm assembly, PTE's 50mm BOV is a key component for preventing potentially harmful compressor surge back into the turbocharger to reduce wear on both the turbo and engine.

Packaged with a weld-on aluminum mounting flange, spring adjustment screw, and two top ports for the ultimate in versatility and adjustability, the high-performance 50mm BOV is generally compatible with most aftermarket manual and electronic boost controllers on the market today.

Features

• Satin black anodized to be aesthetically pleasing while offering long-lasting protection from the elements
• Kevlar-reinforced silicon rolling diaphragm for quick response
• Hard-coat anodized valve stem for enhanced durability
• CFD designed valve and valve body for the highest flow even at low lift
• Attached O-ring seal prevents leakage
• Proprietary wave spring reduces weight while still holding the valve closed under high vacuum idling
• Spring-loaded valve diaphragm releases back up pressure created when the throttle is closed
• Packaged with a weld-on aluminum mounting flange
• Spring adjustment screw & two top ports for the ultimate in versatility and adjustability
• Generally compatible with most aftermarket manual and electronic boost controllers

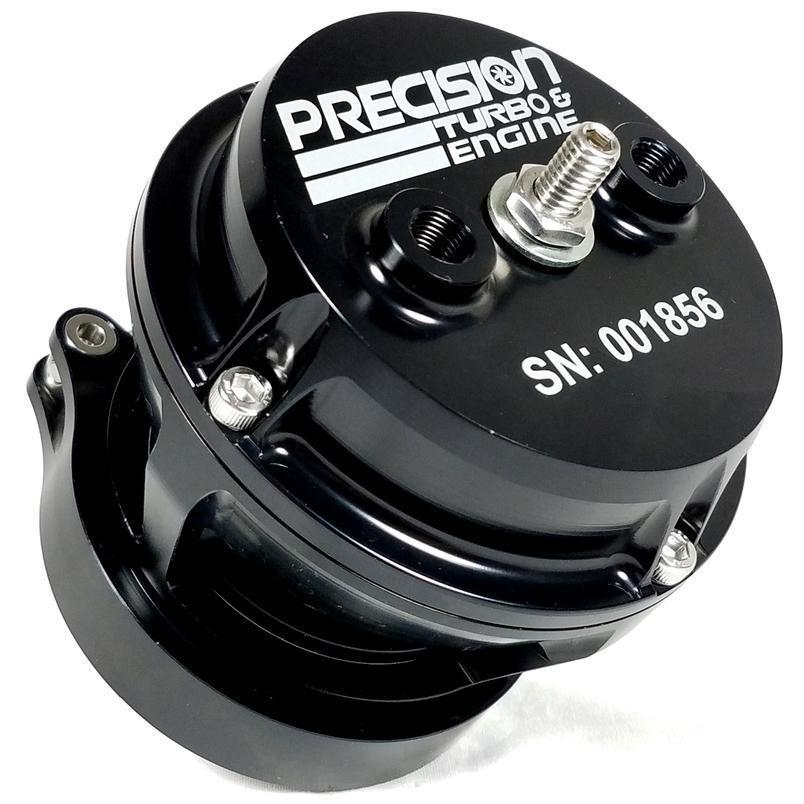

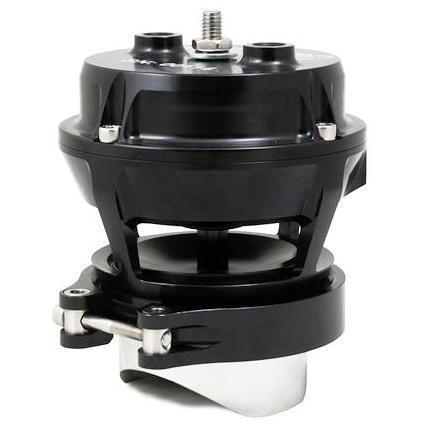

Please Note: Images shown are of the PB64 64mm Blow Off Valve

Applications

• Universal

What's In The Box?

• 1 - PB50 50mm Blow Off Valve
• 1 - Weld-on Mounting Flange

References

• Installation Instructions

Warranty

• Each unit is warranted to be free from manufacturer's defect for a period of 12 months or 12,000 miles.
