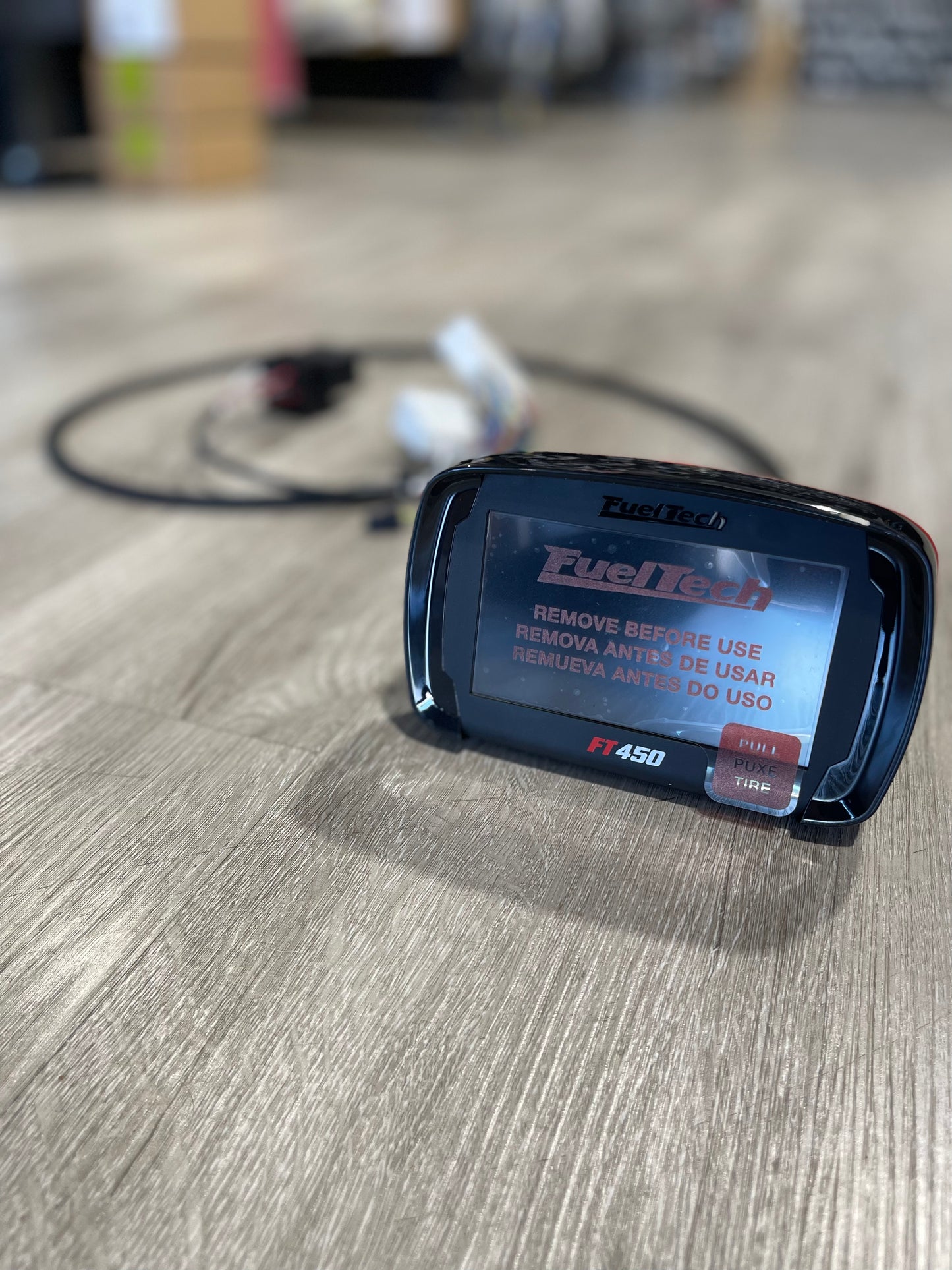

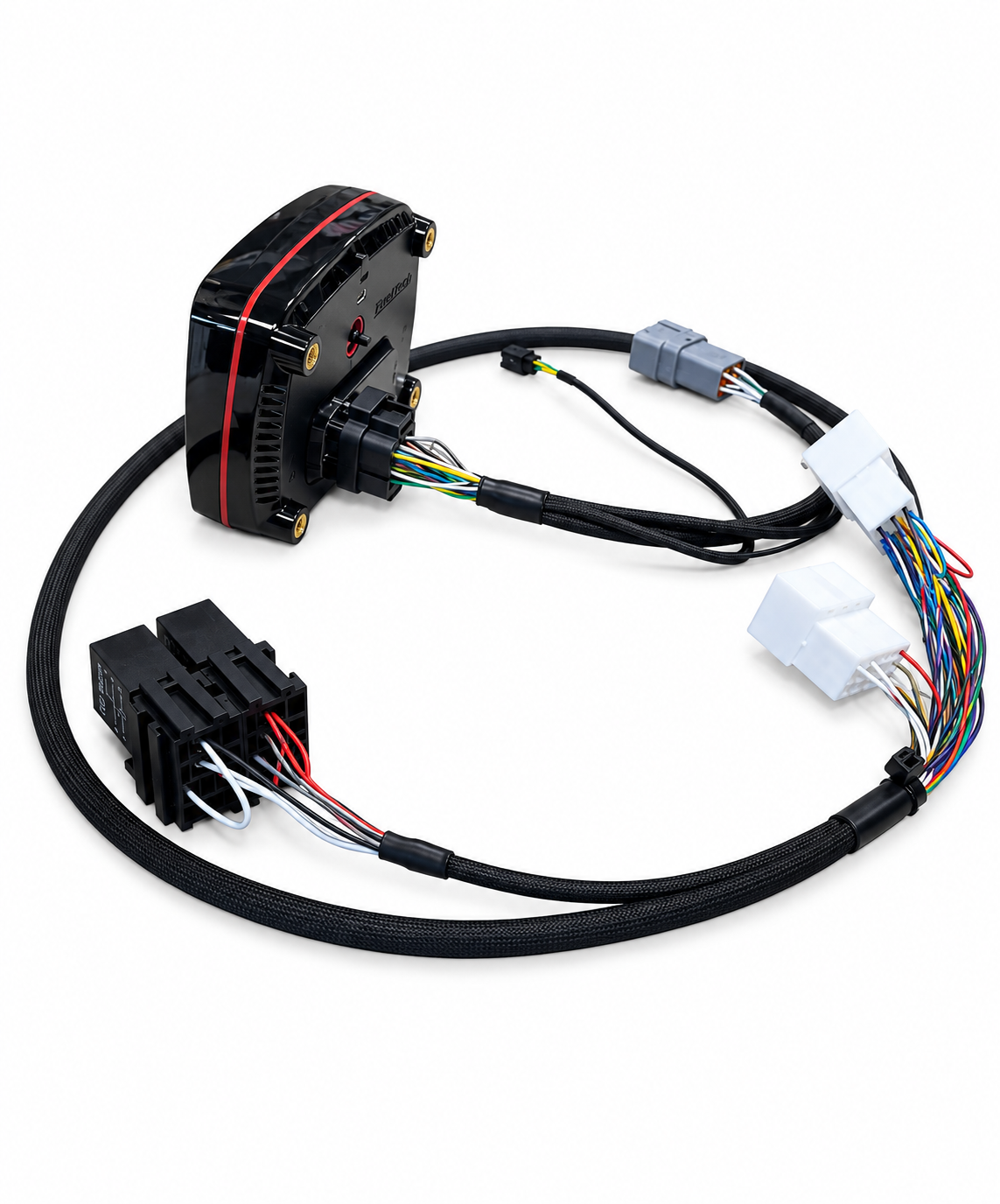

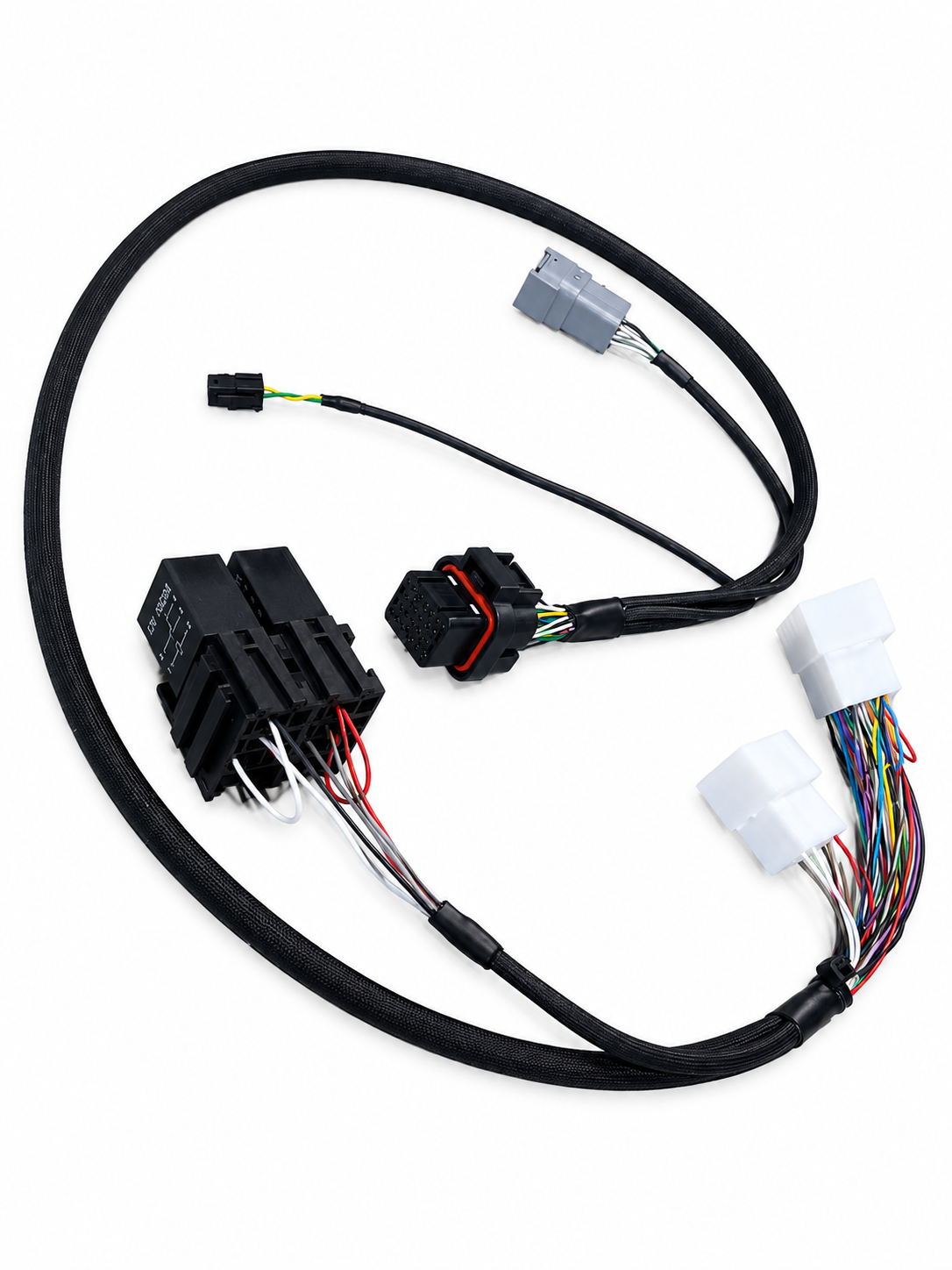

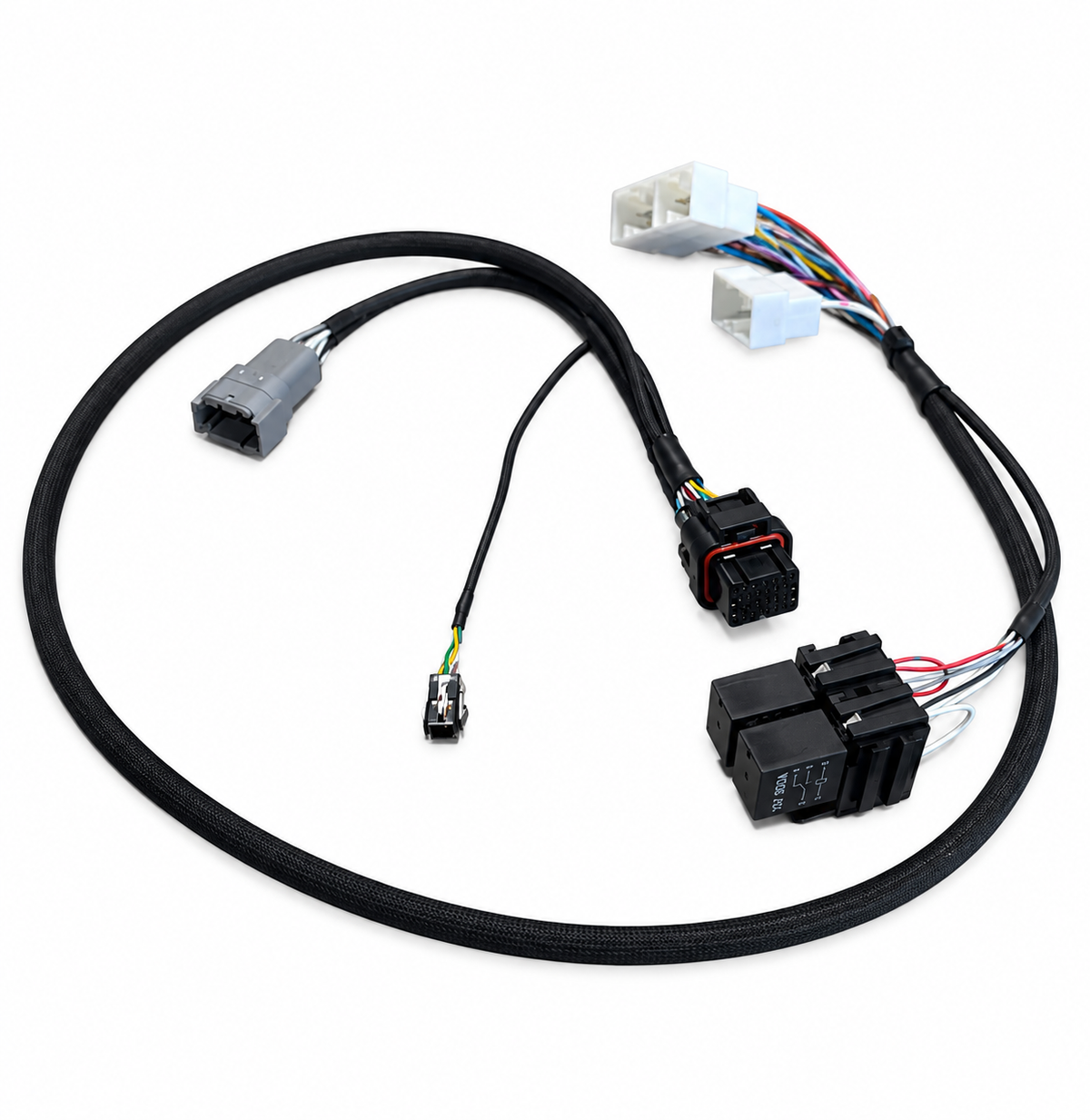

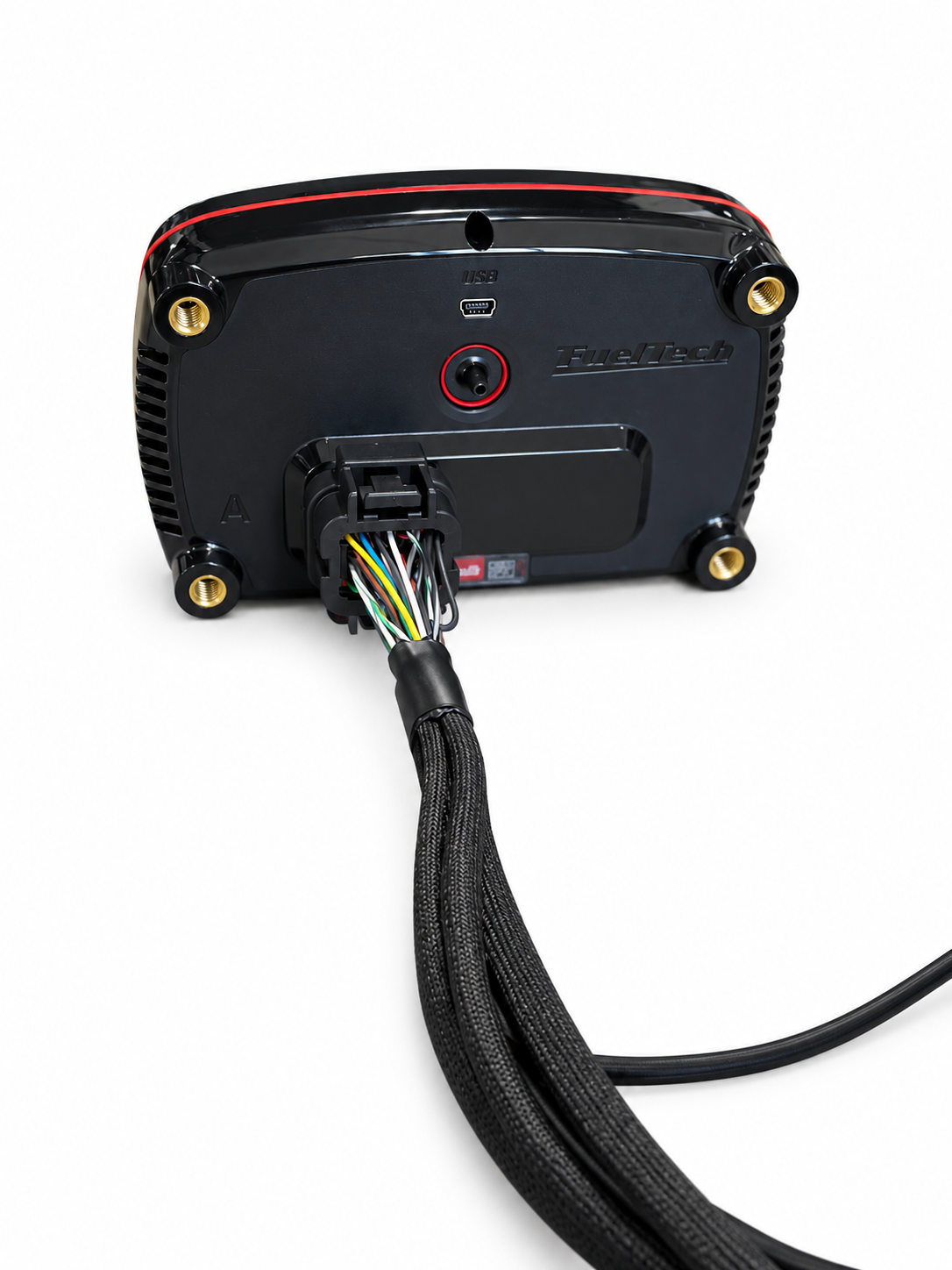

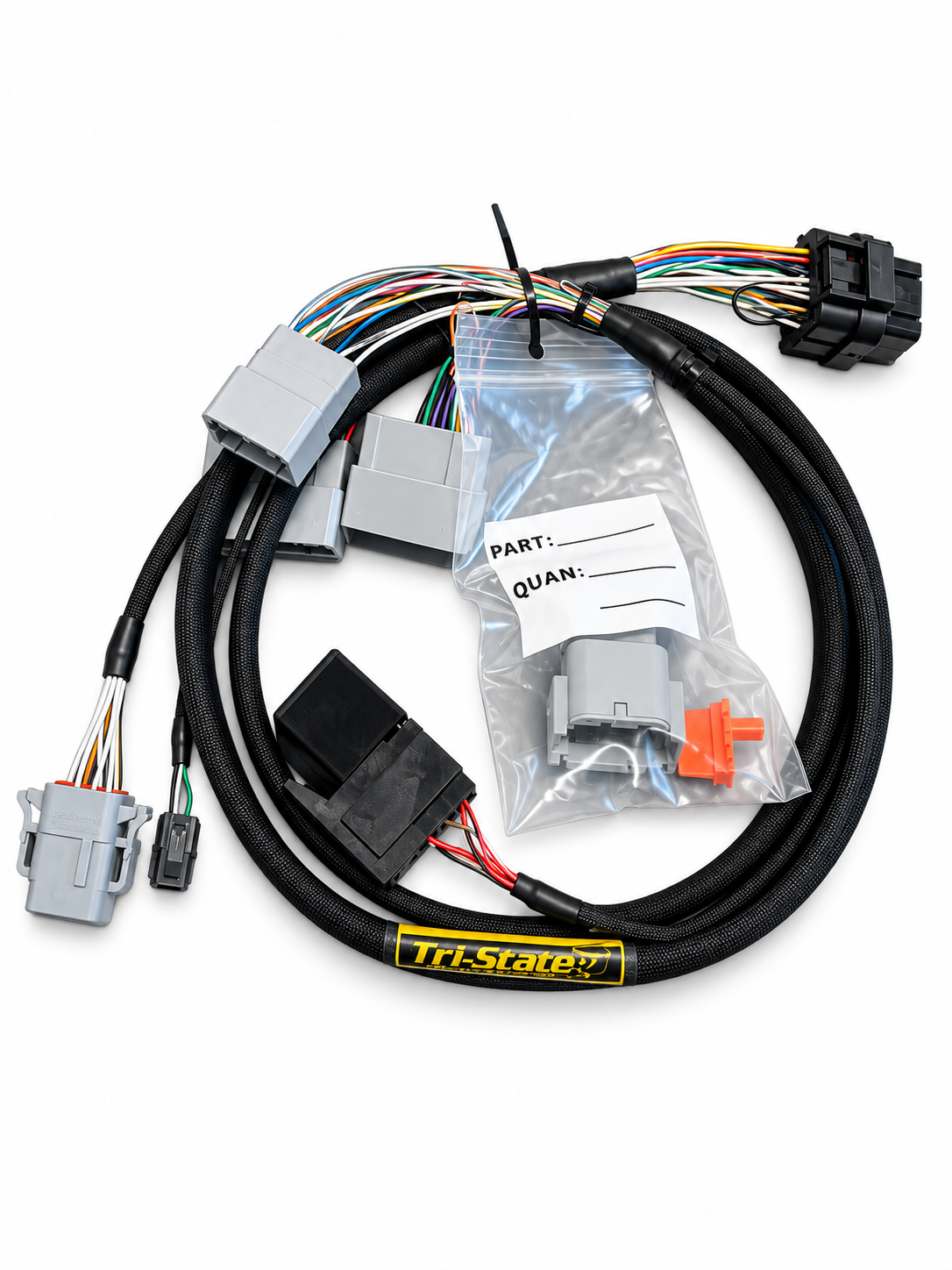

TSM Race - FuelTech FT450 Plug And Play Harness (Acura/Honda)

The TSM Race FuelTech FT450 Plug-and-Play Jumper Harness is designed for Honda/Acura B-Series and K-Series applications where the goal is to upgrade to a FuelTech FT450 engine management system without cutting apart, splicing, or permanently modifying the vehicle’s existing engine wiring harness.

That distinction is important. Installing a standalone ECU traditionally can turn into a substantial wiring project: identifying individual circuits, cutting wires, stripping insulation, crimping or soldering connections, adding relays, repinning connectors, and then troubleshooting everything afterward. A properly engineered jumper harness changes the installation philosophy. Instead of rebuilding the car around the ECU, the jumper acts as the electrical interface between the Honda harness and the FT450.

FuelTech itself uses this same plug-and-play concept with its adapter products, describing adapter harnesses as a way to upgrade engine-management systems while eliminating the need to rewire the vehicle. FuelTech also emphasizes terminated connectors, protective sleeving, and purpose-built harness construction in its own harness products.

Why a Plug-and-Play Harness Matters

On a B-Series or K-Series race build, wiring isn’t simply about getting the engine to start. The ECU depends on clean, correctly routed electrical signals to know what the engine is doing and to control it accordingly.

Crank and cam position, TPS, MAP, engine temperature, intake-air temperature, injector operation, ignition control, grounds, power feeds and other signals all have to reach the appropriate ECU circuits. FuelTech’s FT450 documentation shows how specific its connector assignments are, including dedicated power grounds and configurable inputs and outputs. For example, FuelTech specifies that its ECU power ground must run directly to battery negative without other grounds tapped into it.

The TSM Race jumper harness is therefore much more than an extension cable. Its purpose is to provide the electrical translation/interface between the existing Honda wiring and the FT450 while keeping the installation organized and serviceable.

No Cutting. No Splicing. No Butchering the Factory Harness.

This is arguably one of the biggest advantages.

Installing an aftermarket ECU by manually modifying an existing harness introduces numerous opportunities for problems. Every cut wire and every new splice becomes another potential failure point. A poor crimp, weak solder joint, exposed conductor, incorrectly identified wire, insufficient strain relief, or improperly sealed connection can eventually produce an intermittent problem—and intermittent electrical problems can be particularly frustrating on a race car.

A plug-and-play jumper dramatically reduces that invasive work.

Instead of permanently cutting into a good B-Series or K-Series engine harness, you retain the original connectors and wiring architecture and insert the jumper between the appropriate vehicle/engine-harness connection and the FuelTech.

That brings several practical benefits: installation is cleaner and faster; there are fewer hand-made connections to troubleshoot; the original harness remains substantially intact; ECU removal or replacement is easier; and converting the vehicle back to a previous configuration can be far simpler.

Particularly Valuable on a Race Car

Race cars are subjected to conditions that street-car wiring may rarely experience: high engine-bay temperatures, vibration, repeated hard launches, aggressive engine movement, frequent maintenance and disassembly, and—in some applications—oil, fuel, moisture and other contaminants.

That makes connection quality and harness organization especially important.

Cleaner Installation = Easier Troubleshooting

This benefit often becomes more valuable after the car has been running for a while.

Suppose a B-Series or K-Series race car suddenly develops an RPM sync issue, injector problem, ignition issue or intermittent sensor reading. With a heavily modified harness containing dozens of hand-made splices, diagnosis can become a process of tracing wires and inspecting old modifications.

With a purpose-built jumper, the electrical system is much easier to understand:

Honda harness → TSM Race jumper harness → FuelTech FT450.

That creates clearly defined sections of the system. If something goes wrong, the tuner or technician has a much better starting point for determining whether the issue originates with the engine, sensor, original harness, jumper, ECU configuration or ECU itself.

For racers who travel to events, that serviceability can matter enormously. A clean electrical installation is much easier for another tuner or technician to understand than a one-off harness filled with undocumented modifications.

That last point is important: plug-and-play does not mean every possible aftermarket accessory automatically works without additional wiring or configuration. Added pressure sensors, boost-control hardware, wideband equipment, nitrous systems, aftermarket ignition components or other accessories may still require appropriate wiring and FTManager configuration.

Better for Tuners, Too

A tuner wants predictable signals and an electrical system that can be understood.

When a standalone ECU installation is built from numerous undocumented splices, diagnosing an unusual sensor value can consume dyno time. The tuner may have to determine whether the problem is calibration-related or electrical before meaningful tuning can even begin.

A properly built jumper reduces those unknowns.

That doesn’t eliminate the need to verify timing synchronization, sensor calibration, trigger configuration, injector data, ignition settings, fuel pressure, grounds and all of the other fundamentals of a standalone installation. But it provides a much cleaner foundation from which to perform those checks.

Protecting the Investment in the Car

A quality B-Series or K-Series engine harness has value in its own right. Once its factory connectors are removed and wires have been shortened, cut and repeatedly spliced, returning it to its original configuration becomes more difficult.

The TSM Race jumper approach allows the racer to upgrade the ECU without unnecessarily sacrificing the existing harness.

That can be valuable if the owner later changes ECU platforms, sells the engine package, sells the chassis, moves the FT450 to another vehicle, or simply wants to troubleshoot by temporarily reinstalling another ECU configuration.

Rather than making the FuelTech installation permanent at the wiring-harness level, the adapter makes it far more modular.

Professional Appearance

There is also a major difference in presentation.

A race car with exposed butt connectors, random solder joints, mismatched wire, electrical tape and improvised adapters immediately looks unfinished. A properly constructed, sleeved jumper harness with dedicated connectors looks like a component that was engineered for the vehicle.

That is particularly important on high-end engine bays and show-quality race builds, where the wiring should complement the rest of the car rather than detract from it.
